Spartan 2000 Series

Professional spray finishing. Compact footprint. No compromise.

View Specs
Technical Specifications

Compact by design.
Professional by standard.

The Spartan 2000 Series brings professional-grade downdraught spray finishing to smaller bodyshops and fast-fit operations. Designed around a compact footprint without sacrificing airflow performance or filtration quality, it delivers a clean, consistent spray environment every time.

Downdraught AirflowGas-Fired HeatingLED LightingPLC ControlEU5 FiltrationCompact Footprint
Application
Automotive spray finishing
Internal Dimensions
5800mm × 3600mm × 2400mm (L×W×H)
Airflow
16,000m³/hr
Air Changes
4 per minute
Extraction Type
Downdraught
Heating
Gas-fired indirect
LED Lighting
5000K / 90 CRI / +1200 lux
Filtration (Input)
EU5 — contaminants to 10 microns
Filtration (Extract)
Two-stage EU2 + EU3
Control
PLC-based touchscreen
Construction
Double-skinned insulated panels — 30min fire rated
Pneumatic Supply
5 bar

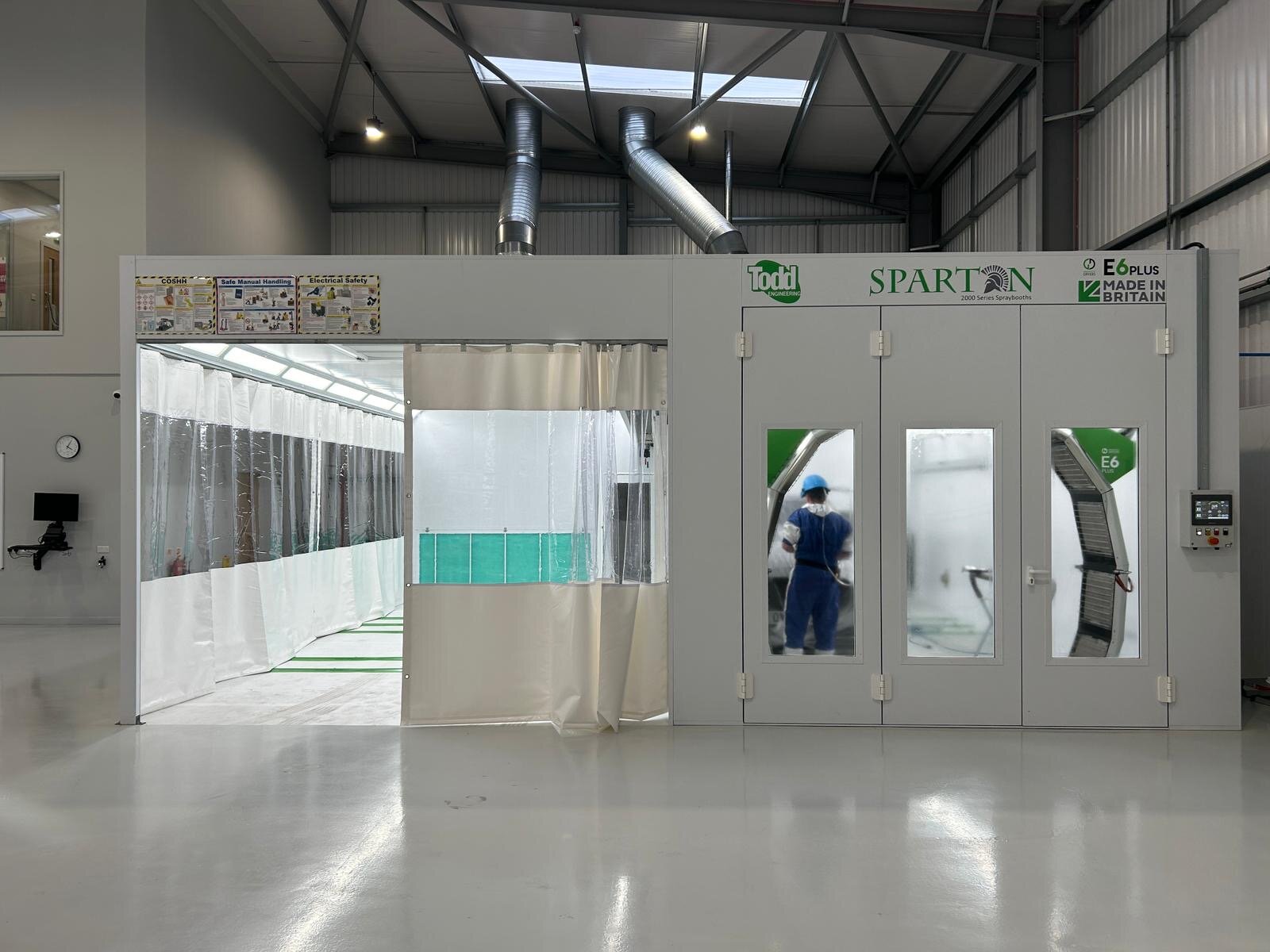

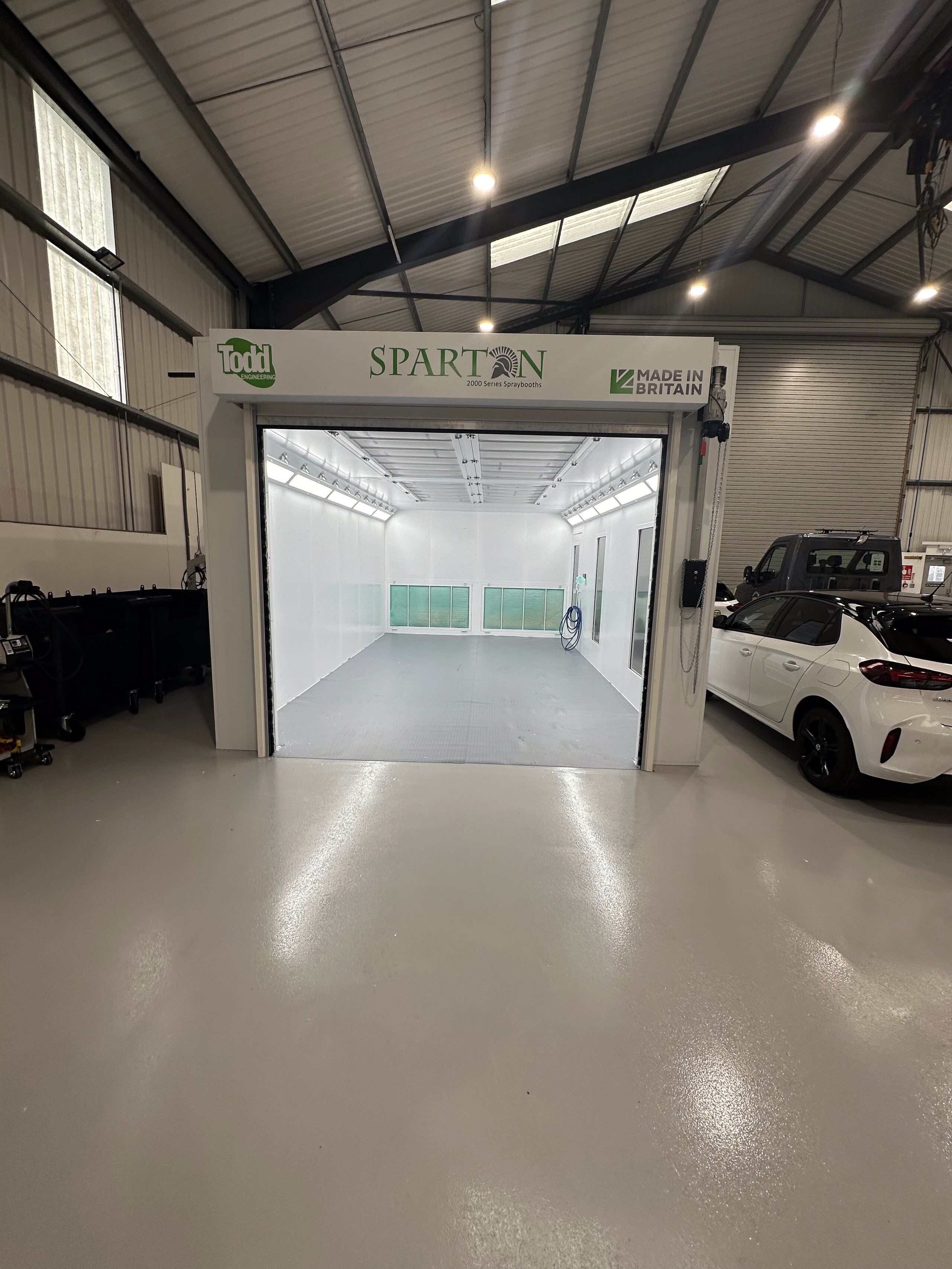

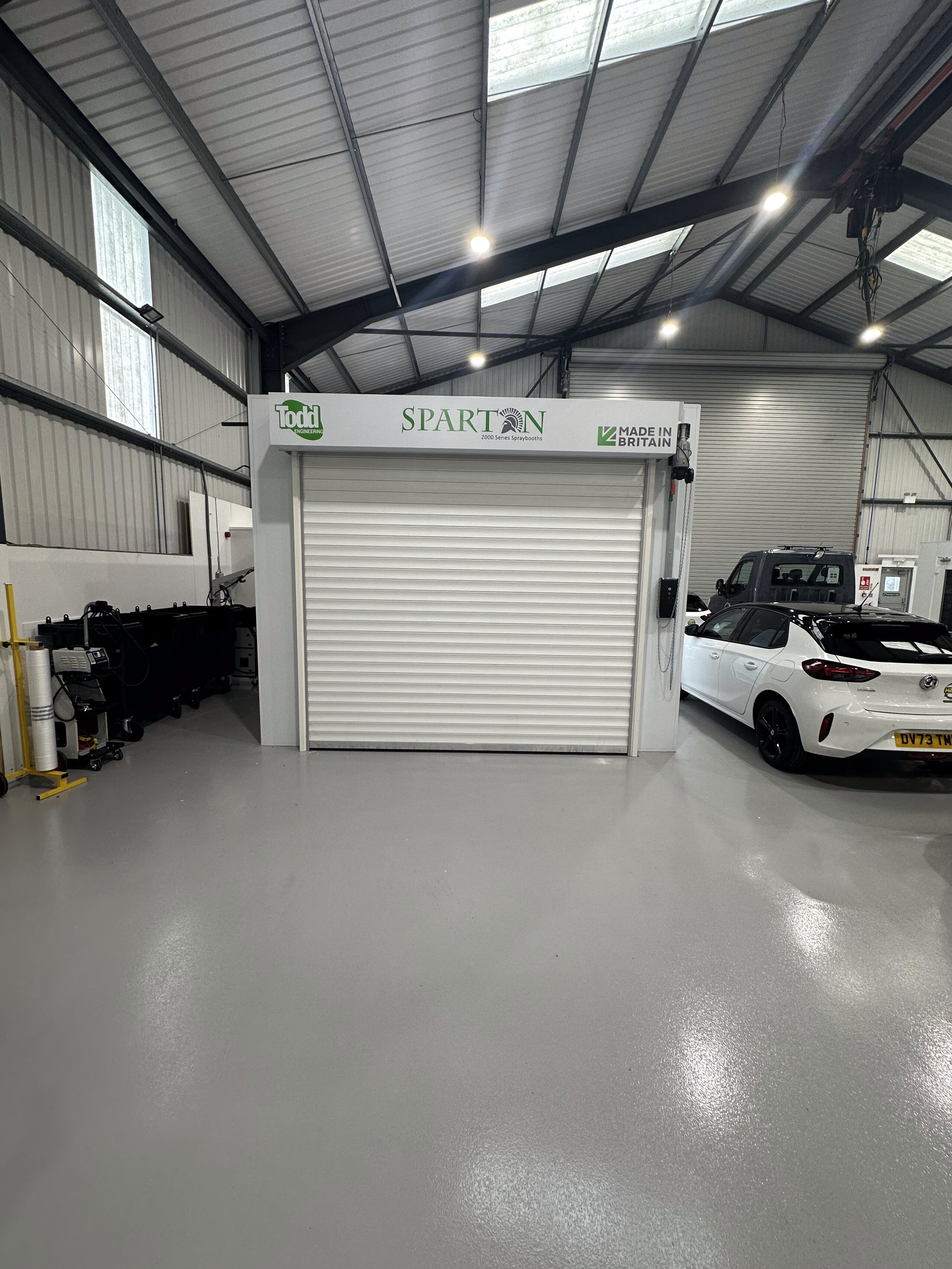

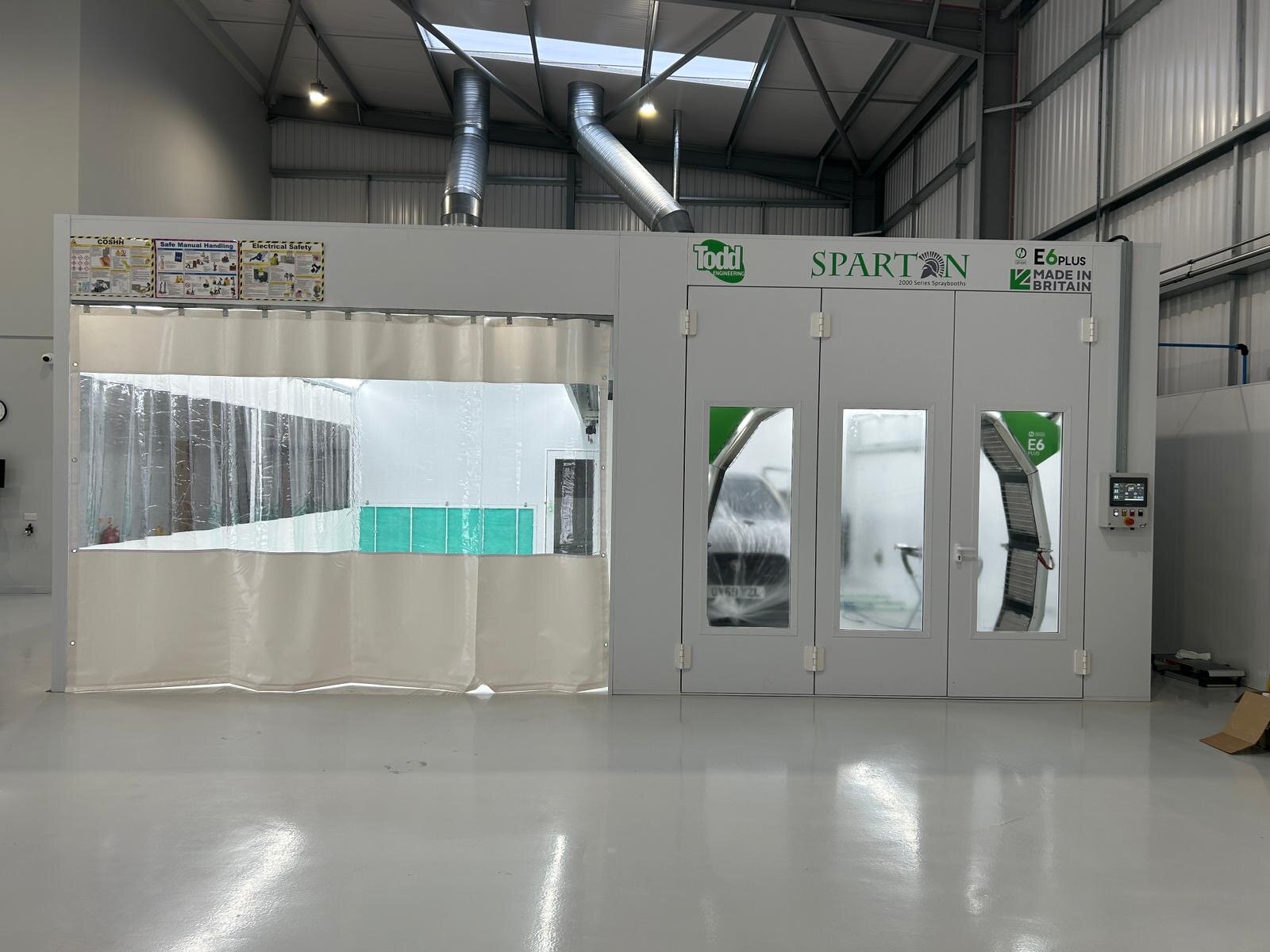

Spartan 2000 Series — product image
Efficiency
Optimised downdraught airflow
Control
Intuitive PLC touchscreen
Installation
Complete turn-key installation
Get in Touch

Interested in the
Spartan 2000 Series?

Talk to one of our engineers. We’ll understand your operation, answer your questions and provide a quote tailored to your requirements.
